1. Overview of Automatic Section Steel Straightener

The Automatic Section Steel Straightener is an advanced industrial machine designed to automatically correct bending, twisting, and warping in section steel products such as H-beams, I-beams, channels, angles, and flat bars. Unlike conventional manual straighteners, this machine integrates automation, hydraulic adjustment, servo control, and real-time measurement, enabling high-speed, high-precision, and fully automatic straightening.

The automatic straightener is widely used in steel Rolling Mills, construction steel fabrication plants, bridge and shipbuilding industries, and wherever high-quality, dimensionally accurate steel sections are required. By eliminating manual intervention, it not only improves efficiency but also ensures consistent product quality.

2. Working Principle

The Automatic Section Steel Straightener operates on the principle of repeated elastic and plastic bending. Its main function is to pass the bent or twisted steel through a series of alternating upper and lower rollers, which apply precise pressure to correct deformation.

Key steps of operation:

1. Material Feeding:
   Section steel is guided into the straightening zone via Roller Conveyors.

2. Automatic Measurement:
   Encoders, laser sensors, or optical measurement systems detect the steel’s straightness and dimensions in real time.

3. Hydraulic & Servo Adjustment:
   Based on measurement data, the hydraulic or servo system adjusts roller position and pressure to achieve optimal straightening.

4. Straightening Process:
   The steel passes through the roller system, receiving controlled bending forces that redistribute internal stresses and correct deformations.

5. Discharge:
   Corrected steel exits smoothly to subsequent processes such as cutting, assembly, or storage.

This fully automated cycle ensures consistent straightening regardless of steel size, shape, or pre-existing deformation, and minimizes material damage.

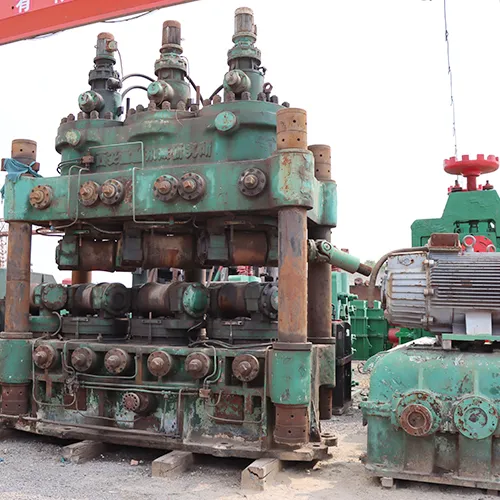

3. Structural Components

A typical Automatic Section Steel Straightener consists of:

1. Main Frame:
   High-strength welded steel frame ensuring rigidity and stability.

2. Straightening Rollers:
   7–15 high-strength alloy rollers, hardened and polished for wear resistance.

3. Upper and Lower Roller Seats:
   Equipped with hydraulic or servo cylinders for automatic adjustment.

4. Transmission System:
   Main motor, Gear Reducer, and coupling transmit power to rollers.

5. Hydraulic System:
   Controls roller pressure, spacing, and lifting for different section types.

6. Control Cabinet & PLC System:
   Integrates sensors, HMI interface, and automation logic for precise operation.

7. Measuring Devices:
   Encoders, laser straightness detection systems, or optical sensors for real-time feedback.

8. Feeding & Discharge Units:
   Powered rollers or conveyors guide the steel smoothly in and out.

9. Lubrication & Cooling Systems:
   Ensure smooth operation of bearings and roller surfaces.

10. Safety Systems:
    Overload protection, emergency stop buttons, and interlocks safeguard operators.

4. Performance Features

1. High Accuracy:
   Straightness tolerance within 1–2 mm/m.

2. Automatic Operation:
   Full automation reduces labor and improves consistency.

3. Wide Material Compatibility:
   Supports H/I-beams, channels, angles, and flat bars.

4. Hydraulic & Servo Control:
   Real-time adjustment of roller position and pressure.

5. High Throughput:
   Capable of continuous operation with minimal downtime.

6. Durability & Reliability:
   Hardened rollers and robust frame for long-term use.

7. Energy Efficiency:
   Intelligent control reduces power consumption.

8. Safety:
   Equipped with overload protection, emergency stops, and interlocks.

5. Control System

Modern machines use PLC-based control systems with HMI interfaces. Operators input steel type, size, and straightness requirements. The system automatically:

• Monitors material speed and straightness via sensors.

• Adjusts roller pressure and positions through servo or hydraulic actuators.

• Ensures real-time synchronization with upstream rolling lines.

• Logs operational data for quality control and maintenance.

Advanced models feature laser or optical straightness detection for micron-level correction and automatic adaptive learning for different steel batches.

6. Applications

• Steel rolling mills — H/I-beams, channels, and angles.

• Bridge and building steel fabrication.

• Shipbuilding — heavy section beams.

• Machinery and rail manufacturing — structural components.

• Metal processing plants — precision commercial section steels.

7. Maintenance and Safety

1. Inspect rollers and bearings for wear and cracks regularly.

2. Maintain hydraulic oil cleanliness and lubrication.

3. Calibrate sensors and check PLC inputs monthly.

4. Monitor motor and actuator temperature.

5. Avoid overloading or adjusting rollers during operation.

Conclusion

The Automatic Section Steel Straightener combines mechanical robustness, hydraulic precision, and intelligent control to provide high-quality, efficient, and fully automated straightening of section steels.
It is essential for modern steel fabrication, ensuring dimensional accuracy and product quality, and will continue evolving with digital intelligence, energy efficiency, and high-speed operation.
