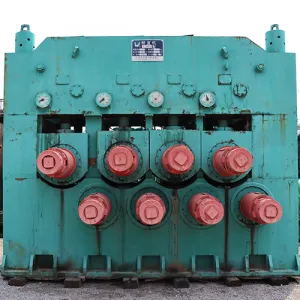

1. Overview of Bar straightening machine

The Bar Straightening Machine, also known as a rod or bar straightener, is a type of precision mechanical equipment used to straighten and sometimes cut various types of metal bars, including steel, stainless steel, aluminum, copper, and other alloy materials. During production, transportation, or storage, metal bars often become bent or coiled due to mechanical stress or temperature variations. To ensure accuracy and stability during subsequent machining or assembly, these bars must be straightened to meet strict geometric and dimensional tolerances.

Bar straightening machines are widely used in industries such as metal fabrication, construction, shipbuilding, aerospace, and automobile manufacturing. The equipment replaces manual labor with a highly efficient automated process, which not only improves productivity but also ensures consistent product quality and reduces production costs.

2. Working Principle

The working principle of a bar straightening machine is based on the mechanical deformation of the bar through a series of precisely positioned rollers. When a curved or coiled bar passes through the straightening rollers, alternating bending forces are applied along different axes of the bar. These controlled deformations gradually eliminate the original curvature, producing a bar that is straight within micrometer-level tolerances.

The process generally includes the following stages:

1. Feeding Stage – The bar is automatically or manually fed into the machine.

2. Straightening Stage – The bar passes through multiple rollers (usually between 5 to 11) arranged in upper and lower layers, which apply continuous alternating pressure.

3. Measuring Stage – The system measures the length of the straightened bar using encoders or laser sensors.

4. Cutting Stage – When the set length is reached, the bar is automatically cut by a hydraulic or rotary cutting device.

5. Collection Stage – The finished straight bars are collected, sorted, and ready for further use.

In high-end models, Servo Motors and PLC (Programmable Logic Controller) systems are employed to achieve fully automated control, ensuring precise adjustment of roller speed, pressure, and alignment.

3. Structural Composition

A standard bar straightening machine consists of the following major components:

1. Main Frame (Machine Body) – The sturdy foundation supporting all working components, designed for vibration resistance and rigidity.

2. Straightening Rollers – The most critical part; made from wear-resistant alloy steel, precision ground, and heat-treated for durability.

3. Feeding Mechanism – Usually composed of rollers or belts ensuring smooth, continuous feeding of bars.

4. Cutting Mechanism – Can be hydraulic or mechanical, designed to deliver clean, burr-free cuts.

5. Drive System – Includes motors, gears, and transmission shafts that deliver power to the rollers.

6. Control System – Equipped with touch-screen panels for setting parameters such as bar diameter, length, speed, and tolerance.

7. Lubrication and Cooling System – Reduces friction between rollers and bars, ensuring longevity.

8. Safety Protection System – Includes covers, emergency stop buttons, and automatic shutdown features to ensure operator safety.

4. Key Features and Advantages

Modern bar straightening machines are equipped with advanced technology, offering numerous benefits:

• High Efficiency: Capable of processing hundreds of bars per hour with minimal downtime.

• Precision Control: Advanced sensors and servo motors ensure straightness accuracy within ±0.1 mm/m.

• Automation: Integrated PLC control allows for automatic feeding, straightening, cutting, and length measurement.

• Material Versatility: Suitable for different materials, including round, square, and hexagonal bars.

• Durability: High-strength alloy components ensure long operational life with minimal maintenance.

• Low Noise and Vibration: Designed with precision bearings and dynamic balancing systems.

• Energy Saving: Optimized motor drives reduce energy consumption by up to 20%.

• Safety Assurance: Multiple protection systems prevent overloading or accidental injury.

5. Application Areas

Bar straightening machines are used in various industrial fields:

1. Construction Industry – Straightening reinforcing bars (rebar) for concrete reinforcement.

2. Machinery Manufacturing – Producing shafts, rods, and precision components.

3. Automotive Industry – Processing steel bars used in engine parts and suspension systems.

4. Aerospace – Straightening lightweight alloy rods used in structural frames.

5. Metal Product Industry – Preparing materials for wire drawing, threading, and machining.

6. Shipbuilding and Railways – Producing high-strength steel rods for frames and support structures.

6. Operation and Maintenance

Proper maintenance ensures the stability and longevity of the bar straightening machine:

• Regularly clean the rollers and feeding channels to remove dust and metal chips.

• Check roller alignment and adjust if necessary.

• Apply lubrication oil to moving parts at scheduled intervals.

• Inspect electrical components, wiring, and sensors periodically.

• Replace worn-out rollers or cutting blades promptly.

• Keep the machine dry and protected from corrosion.

• Only trained personnel should operate the equipment.

Conclusion

The Bar Straightening Machine is an indispensable tool in modern metal processing industries. By integrating precision mechanics, intelligent control, and energy-efficient design, it offers high productivity, excellent accuracy, and reliability. As automation and smart manufacturing continue to advance, bar straightening machines will play an even more significant role in promoting industrial modernization and sustainable production.
