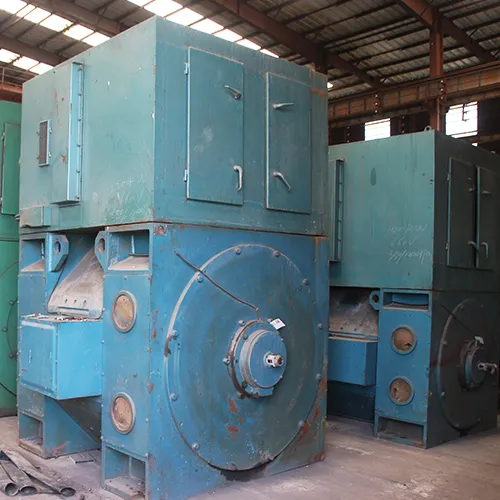

1. Overview of Industrial Electric Motor

An Industrial Electric Motor is an electromechanical device that converts electrical energy into mechanical energy to drive various types of industrial equipment. It serves as a vital component in modern industries such as manufacturing, mining, petrochemicals, construction, and transportation. Electric motors provide the rotational force needed to power pumps, fans, compressors, conveyors, cranes, and machine tools, among many others.

In the industrial field, electric motors are widely appreciated for their reliability, energy efficiency, and ability to operate continuously under heavy loads. With the rapid development of automation and digital manufacturing, the demand for high-performance industrial electric motors continues to grow, driving technological innovations in control precision, energy saving, and intelligent monitoring.

2. Working Principle of Industrial Electric Motor

The working principle of an electric motor is based on electromagnetic induction, discovered by Michael Faraday. When an electric current flows through a conductor placed in a magnetic field, it experiences a mechanical force. In an electric motor, this principle is utilized to produce rotational motion.

In general terms, when current passes through the coils of the stator or rotor, a magnetic field is generated. The interaction between this magnetic field and the fixed magnetic field (produced by permanent magnets or electromagnets) creates torque, which rotates the rotor. The mechanical output from the rotor is then transmitted to various mechanical systems via shafts or couplings.

3. Structure and Main Components

An industrial electric motor generally consists of the following key components:

1. Stator – The stationary part that produces the rotating magnetic field. It contains laminated steel cores and copper windings.

2. Rotor – The rotating part connected to the output shaft. It interacts with the magnetic field to generate torque.

3. Shaft – Transfers mechanical power from the rotor to the external load.

4. Bearings – Support the rotor and allow smooth rotation with minimal friction.

5. Frame (Housing) – Protects the internal components and provides mechanical stability.

6. Cooling System – Uses air or liquid to dissipate heat generated during operation.

7. Terminal Box – Provides electrical connections for power supply and control wiring.

Depending on the application and design, motors may also include speed sensors, vibration detectors, or integrated drive systems for performance monitoring.

4. Classification of Industrial Electric Motors

Industrial electric motors can be classified according to power source, construction, and application.

1. According to Power Source

• AC Motors: Operate on alternating current; include induction motors (asynchronous) and synchronous motors.

• DC Motors: Operate on direct current; include brushed and brushless types.

2. According to Construction

• Induction Motor (Asynchronous Motor): The most widely used in industries; simple, reliable, and cost-effective.

• Synchronous Motor: Maintains constant speed regardless of load variation.

• Stepper Motor: Converts electrical pulses into discrete mechanical steps, widely used in CNC machinery.

• Servo Motor: Provides precise control of position, speed, and torque.

3. According to Application

• General-purpose Motors – Used in pumps, fans, conveyors, etc.

• Explosion-proof Motors – Used in hazardous environments such as chemical plants.

• High-efficiency Motors – Designed to save energy and meet international standards.

• Variable-frequency Motors – Compatible with inverters for adjustable speed control.

5. Performance Characteristics and Advantages

Industrial electric motors offer several performance benefits that make them indispensable in modern production:

• High Efficiency and Energy Saving – Especially with the use of IE3 and IE4 class motors, energy consumption can be reduced by over 20%.

• Long Service Life – Built with high-quality materials and precision bearings.

• Strong Torque Output – Suitable for heavy-duty applications requiring large starting torque.

• Low Noise and Vibration – Advanced rotor balancing and optimized design minimize operational noise.

• Easy Maintenance – Modular structure allows for quick inspection and replacement.

• Automation Integration – Compatible with PLCs, inverters, and smart monitoring systems.

6. Application Fields of Industrial Electric Motors

Industrial electric motors are widely used in:

1. Manufacturing and Production Lines – Driving conveyor systems, CNC machines, and assembly robots.

2. Mining and Metallurgy – Powering crushers, mills, and hoists.

3. Petrochemical and Energy Industry – Used in pumps, compressors, and fans for refineries and power plants.

4. Water Treatment – Driving pumps for water circulation and filtration systems.

5. Transportation – In electric vehicles, trains, and ship propulsion systems.

6. Building Automation – Controlling HVAC systems, elevators, and escalators.

Conclusion

The Industrial Electric Motor stands at the heart of modern industry, providing the essential power that drives machinery and automation systems worldwide. With ongoing innovations in materials, control technologies, and digital integration, industrial motors are becoming smarter, more efficient, and environmentally friendly. In the future, the synergy between electric motors and intelligent control systems will continue to redefine the landscape of industrial productivity and sustainability.
