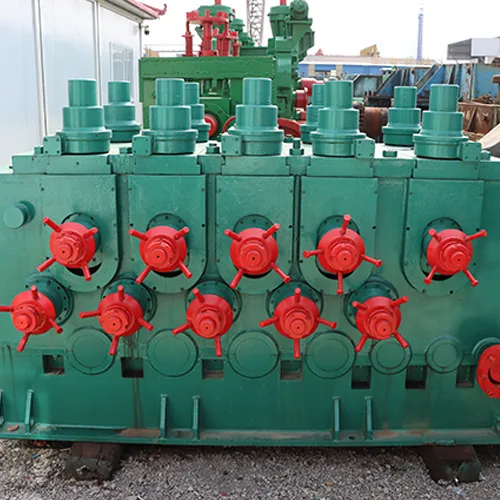

1. Overview of Straightening Machine

A Straightening Machine is a type of mechanical equipment designed to correct the deformation and curvature of metal materials such as bars, wires, pipes, or profiles. During the production, transportation, or storage of metal products, internal stresses and external forces often cause the material to bend or twist. A straightening machine removes these deformations by applying controlled mechanical forces through a series of rollers or dies, thus restoring the material to its desired straightness and dimensional accuracy.

Straightening machines are widely used in industries such as metallurgy, construction, automobile manufacturing, machinery production, and metal fabrication. They not only improve product appearance and performance but also ensure that subsequent processing, such as cutting, welding, or assembly, can be carried out smoothly and accurately.

2. Working Principle of Straightening Machine

The basic working principle of a straightening machine is founded on elastic and plastic deformation theory. When a bent metal bar passes through multiple rollers arranged alternately in upper and lower positions, it undergoes repeated bending in opposite directions. Each roller applies pressure that exceeds the elastic limit but remains below the fracture point of the material. Through this process, the internal stresses are redistributed and neutralized, gradually removing the original curvature and achieving straightness.

In most straightening systems, the number and position of the rollers can be adjusted based on material type, diameter, and hardness. For example:

• Wire straighteners typically use 5–9 small rollers.

• Bar or pipe straighteners may use 7–13 large rollers for heavy-duty operations.
  Modern machines also include Servo Motors and computer control systems to achieve automatic adjustment, tension control, and real-time straightness monitoring.

3. Structure and Components

A standard straightening machine is composed of several main parts:

1. Frame (Body) – Provides mechanical stability and supports all components.

2. Straightening Rollers – The core part responsible for bending and correcting the material. These are made of wear-resistant alloy steel and are precision-ground.

3. Feeding Mechanism – Ensures smooth entry of materials into the roller system.

4. Drive System – Usually consists of motors, gearboxes, and transmission shafts that power the rollers.

5. Control System – Allows operators to set parameters such as speed, roller pressure, and material size.

6. Cutting or Collection Device – In integrated systems, straightened materials are automatically cut to length and collected.

7. Lubrication and Cooling System – Reduces friction, prevents overheating, and prolongs equipment lifespan.

4. Classification of Straightening Machines

Straightening machines can be classified based on the type of material, mechanical structure, and operation mode:

1. According to Material Type

• Wire Straightening Machine – For thin metal wires (steel, copper, aluminum).

• Bar straightening machine – For thicker steel or iron bars.

• Pipe Straightening Machine – Designed to straighten hollow tubes and pipes.

• Profile Straightening Machine – Used for H-beams, angle irons, and other structural sections.

2. According to Structure

• Roller-type Straightener – Uses multiple rollers for continuous straightening.

• Die-type Straightener – Uses forming dies for precision straightening of specific shapes.

3. According to Operation Mode

• Manual Straightening Machine – For small-scale workshops.

• Semi-automatic Type – Requires limited human supervision.

• Fully Automatic Straightening and Cutting Machine – Integrates feeding, straightening, cutting, and collecting operations automatically.

5. Performance Characteristics and Advantages

Modern straightening machines offer a series of technical advantages:

• High Precision – Ensures straightness within tight tolerances.

• High Efficiency – Capable of processing several tons of material per hour.

• Automation and Intelligence – Equipped with PLC, sensors, and touch-screen control systems.

• Durability – Components are heat-treated and made from high-strength alloys.

• Energy Saving – Optimized transmission systems reduce power loss.

• Low Noise and Vibration – Advanced balancing design ensures stable operation.

• Wide Material Adaptability – Suitable for different diameters, hardness levels, and metal types.

6. Application Fields

Straightening machines are essential in multiple industries:

1. Steel and Metallurgy Industry – For processing rebar, wire rods, and steel tubes.

2. Automotive Manufacturing – Straightening shafts, rods, and suspension parts.

3. Construction Engineering – Straightening reinforcement bars for concrete structures.

4. Machinery and Tool Making – Preparing precision rods and shafts for CNC machining.

5. Cable and Electrical Industry – Straightening copper or aluminum conductors.

6. Aerospace and Shipbuilding – Ensuring precise alignment of metal structural components.

7. Operation and Maintenance Guidelines

To maintain high performance and extend equipment lifespan:

• Regularly clean the rollers and feeding system.

• Apply proper lubrication to moving parts.

• Inspect roller alignment and replace worn parts promptly.

• Avoid overloading to prevent excessive stress on the rollers.

• Keep electrical systems and control units dry and dust-free.

• Perform regular calibration to ensure straightness accuracy.

Conclusion

The Straightening Machine is a fundamental and indispensable piece of equipment in modern metalworking industries. It ensures that raw materials meet the geometric and mechanical requirements for high-precision manufacturing. As automation and smart control technologies continue to evolve, straightening machines will play an increasingly critical role in achieving higher efficiency, accuracy, and sustainability in industrial production.
